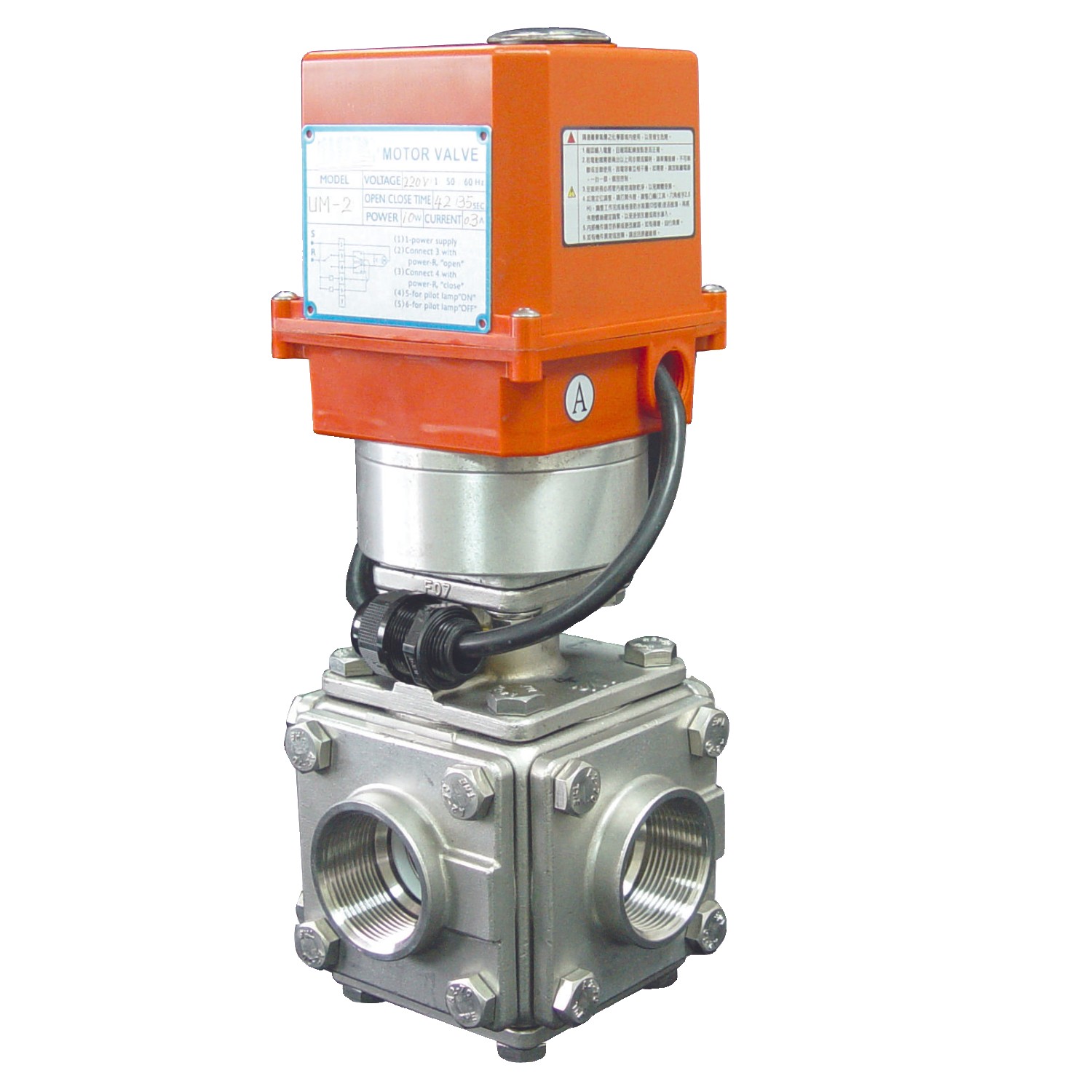

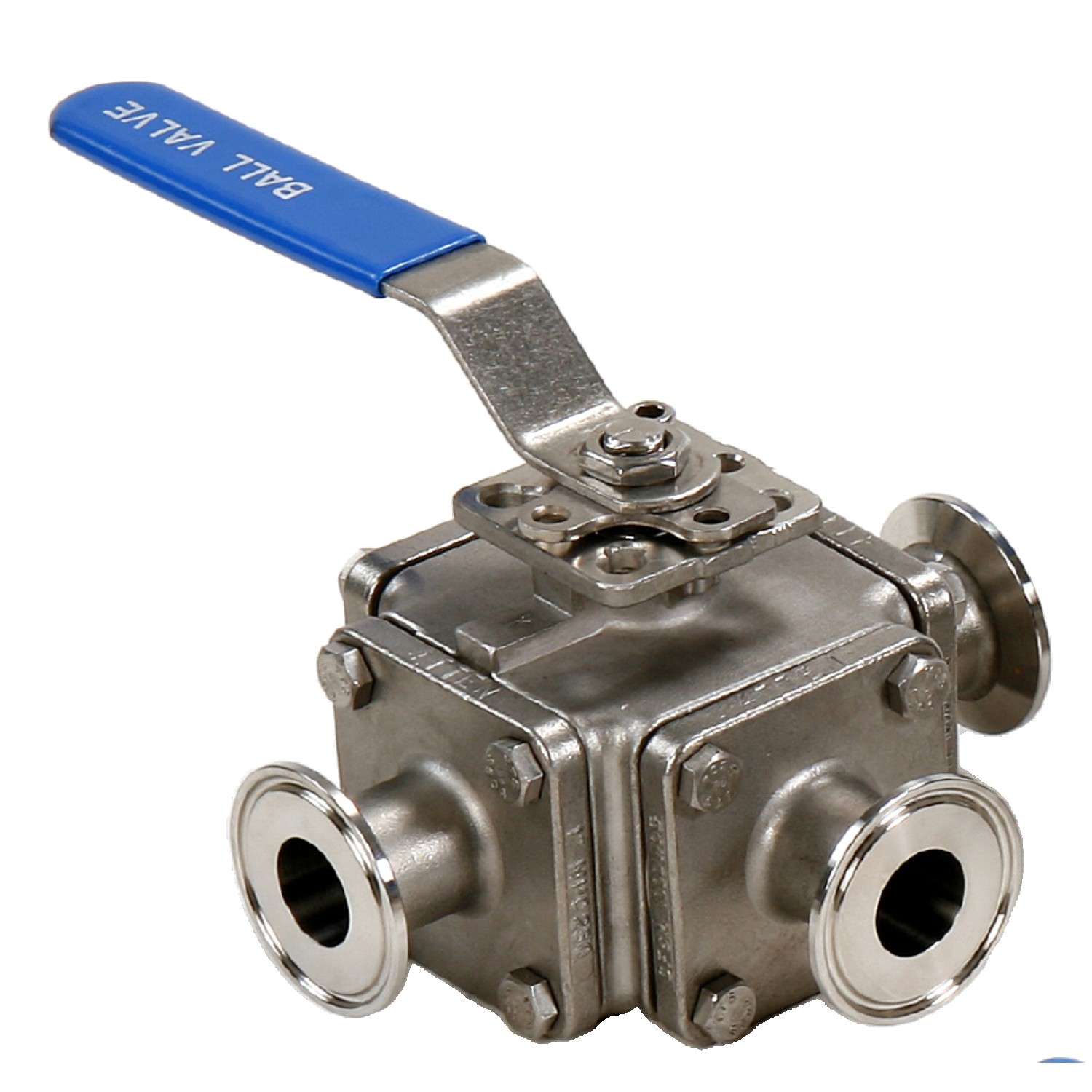

AF-S2H 3, 4 ,5-Way Ball Valve
- Size Range 1/2" - 4"
- Pressure Rating 1000 / 3000 PSI
- Seat Material PTFE / DELRIN / PEEK
- End Connection Threaded, Socket Weld, Butt Weld, Tri-Clamp, Tube
- Mounting Pad ISO 5211 Direct Mounting Pad
Construction design follow ANSI 816.34 Standard
Body & end are investment casting
Self adjusting stem packing
4 piece ball seats
Blow-out proof stem design
100% air tested under water at 80-100 psi
Working pressure 3000 psi
Temperature range -20 to 450'f
ISO 5211 direct mounting pad / connection DIN 3337
Available in stainless steel or carbon steel
Available in 3 way & 4 way
Available in T-port or L port or X-port
