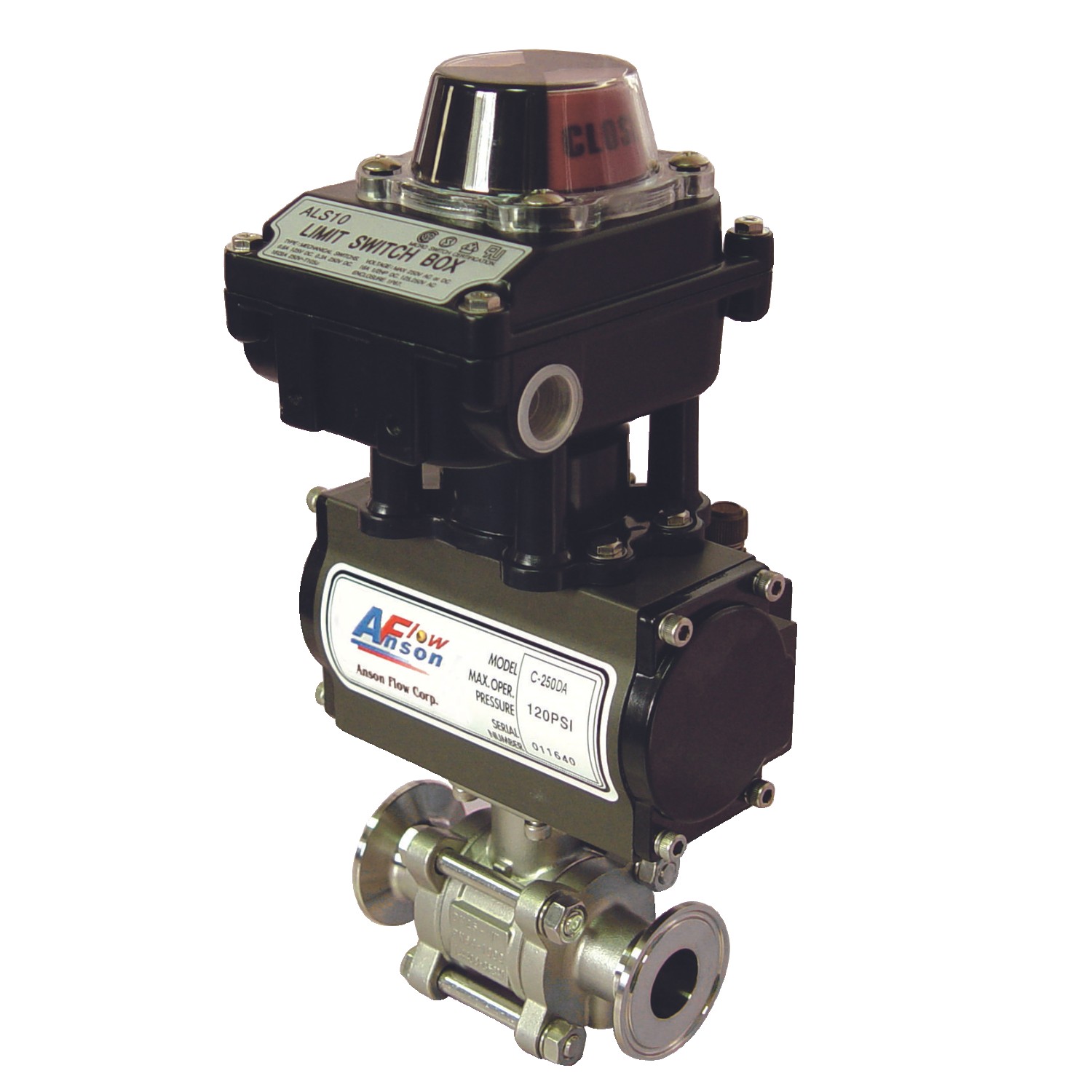

Visual Position Indicator: Quick visual verification of valve position.
"Quick-Set" Cam: Tool-free adjustment of switch cam position.
Multipoint Terminal Strip: 8 contacts for easy solenoid valve connections.
Dual Wire Potting:
ALS10: Dual 1/2" conduit entries
ALS20: Dual 3/4" conduit entries
Captive Cover Bolts: Bolts stay attached when the cover is removed.
Easy Mounting Bracket: Compatible with ISO 5211 for easy actuator mounting.
|
Weather Proof |
|
|
Protection |
IP67 |
|
Switch |
Mechanical, Proximity Sensors, GO switches, Magnetic Switch |
|
Terminal Strips |
Standard 8 Points |
|
Position Indicator |
0° ~90° (Standard) |
|
Current Output Signal |
4~20mA, 20~4mA |
|
Cable Entry |
1/2 NPT , 3/4 NPT |
|
Ambient Temp. |
-40 ~ 85 °C |
|
Material |
Aluminum Die-casting |
|
Model |
Material |
Size |
|
P-1 |
Plastic |
30 x 80 H:20 |
|
S-1 |
Steel |
30 x 38 H:20~30 |
|
S-2 |
Steel |
30 x 80 H:20 |
|
S-3 |
Steel |
30 x 130 H:30 |
|
S-4 |
Steel |
30 x 80 H:30 |
