Precision Thread Manufacturing: Standard Threads and Custom Thread Solutions

In valve manufacturing, a thread may look like a small detail, but its accuracy can directly affect assembly, sealing performance, interchangeability, and installation on site.

At Anson Flow, threaded connections are manufactured according to the applicable thread standards and customer requirements. From standard pipe threads to special or proprietary thread profiles, we focus not only on machining the thread, but also on verifying that the finished connection meets the required dimensions and fit.

Manufacturing According to Different Thread Standards

Different markets, piping systems, and applications may require different thread types.

Depending on the valve design and customer specification, Anson Flow can manufacture threaded connections according to commonly used international standards, such as:

·         NPT / NPTF

·         BSPT

·         BSPP

·         Metric Threads

·         Other specified thread forms and dimensions

Before production, our engineering team reviews the required thread type, size, pitch, tolerance and connection details to ensure that the machining requirements are clearly defined.

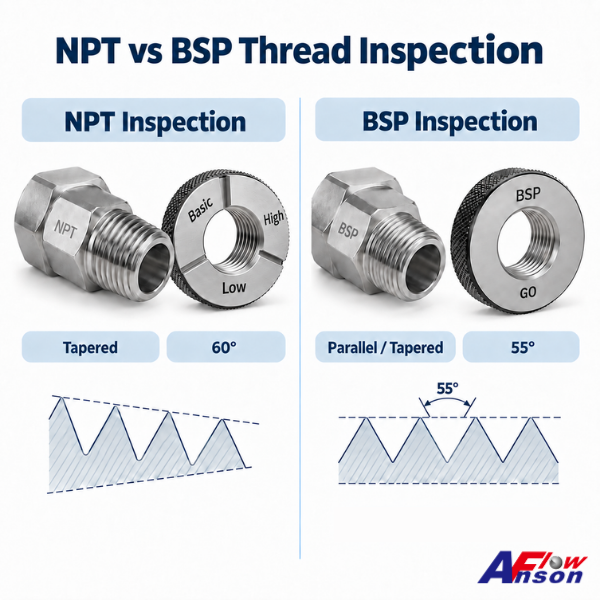

Thread Inspection Is Part of the Manufacturing Process

Producing a thread is only the first step.

After machining, the thread must also be checked to confirm that it meets the specified requirement.

Depending on the thread type and application, inspection may include:

·         Thread gauges

·         GO / NO-GO gauges

·         Dimensional inspection

·         Thread pitch verification

·         Fit-up inspection with mating components

·         Customer-specified inspection requirements

This helps reduce potential problems during installation, such as improper engagement, incompatible connections or difficulty assembling the valve with existing piping or equipment.

What If the Customer Uses a Special Thread?

Not every project uses a standard connection.

In replacement projects, OEM equipment, older machinery or specialized industrial systems, customers may encounter a thread that does not completely match a commonly available standard.

In these situations, Anson Flow can provide customized thread machining based on the customer's actual requirements.

Customers may provide:

1. Technical Drawings

If a drawing is available, we can review the specified thread dimensions, pitch, tolerances and connection details and manufacture accordingly.

2. Physical Samples

If no complete drawing is available, customers may also provide an existing sample.

Our engineering team can evaluate the sample dimensions and connection characteristics and reproduce the required thread based on the actual component.

This is particularly useful for replacement valves, OEM parts and discontinued or special equipment, where matching the existing connection can be more important than simply selecting a standard thread.

From Standard Connections to Customized Solutions

A threaded valve should not require the customer to redesign the entire piping system just because the connection is unusual.

Whether your application requires a standard NPT or BSP connection, a specific metric thread, or a special thread based on an existing component, Anson Flow can evaluate the requirement and provide a suitable manufacturing solution.

For special thread inquiries, customers are welcome to send us:

·         Thread type or applicable standard

·         Valve size and model

·         Technical drawing

·         Thread dimensions and pitch

·         Photos of the existing connection

·         Physical sample, if available

Our engineering team will review the information before production and confirm the feasible manufacturing solution.

Need a valve with a special threaded connection?

Send us your drawing or existing sample, and our team will help evaluate the required thread and customization possibilities.
