The Secret to Preventing Fluid Solidification: How the AF-S1J Steam Jacketed Ball Valve Works
In pipeline systems for petrochemicals, food processing, or specialty chemicals, the "temperature" of the fluid is often the critical factor determining the success of a production line. When media inside the pipeline (such as asphalt, liquid sulfur, high-viscosity resins, or chocolate) experience a drop in ambient temperature, they are highly prone to increased viscosity, crystallization, or even severe solidification. This not only damages the pipeline but also leads to costly, unplanned downtime.
To solve this major pain point, the Heat Jacketed Valve has become an indispensable line of defense in industrial fluid control. Today, we will take a deep dive into one of Anson Flow's flagship products—the AF-S1J Steam Jacketed Ball Valve—to uncover the physics and mechanics it uses to perfectly maintain thermal balance within your piping system.
How Does It Retain Heat? Unveiling the Magic of Heat Exchange
A heat jacketed valve doesn't generate heat on its own; instead, it relies on an ingenious heat exchange structure to provide precise temperature control.

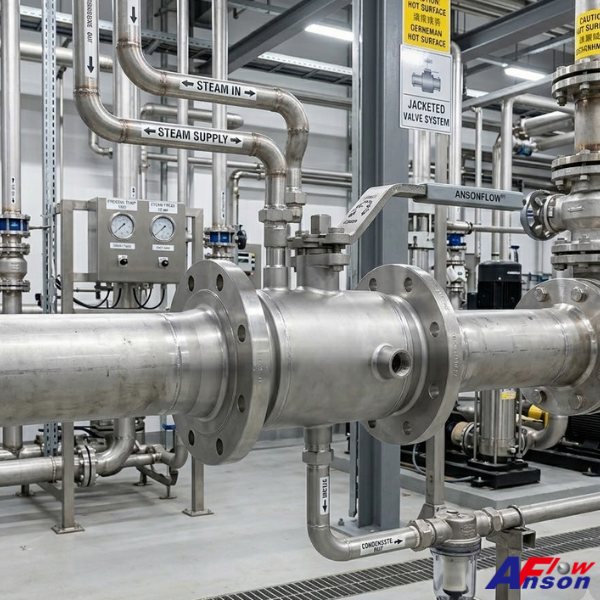

Taking the AF-S1J as an example, engineers have precision-welded an additional metal shell around the exterior of a standard ball valve, creating a completely sealed "jacket" space. Think of this design as putting a custom-fitted thermal coat on the valve.
· Independent Heating Circulation Loop: The jacket itself features dedicated inlet and outlet ports. Plant engineers can inject an external heating medium, such as high-temperature steam or thermal oil, directly into this isolated space.
· Omnidirectional Heat Transfer: As the high-temperature medium continuously circulates within the jacket, thermal energy is evenly and persistently conducted through the metal valve body into the internal fluid. This "wraparound" heat transfer ensures that when the fluid passes through the valve—typically the node in a pipeline most susceptible to pressure drops and heat loss—it remains at its optimal operating temperature and fluidity, thoroughly eliminating the risk of dead-zone solidification.
Flexible Configurations and Core Advantages of the AF-S1J Series
When facing complex and variable pipeline designs, a single specification rarely fits all needs. The standout feature of the AF-S1J series is its exceptional configuration flexibility:
1. Support for Multiple Structures (1-Piece / 2-Piece / 3-Way):
l 1-Piece & 2-Piece: Ideal for standard straight-line shut-off and opening, featuring a compact structure that is easy to install and maintain.
l 3-Way: Perfectly handles fluid diversion and mixing requirements while ensuring absolute temperature consistency during flow direction changes.
2. Seamless Welding Process & Rigorous Pressure Design: The biggest nightmare for a jacketed valve is internal or external leakage from the jacket. Our precision welding process undergoes rigorous testing to ensure a flawless joint between the jacket and the valve body. This not only guarantees outstanding pressure resistance but also maximizes the circulation efficiency of the heating medium.
3. Material Traceability & International Standard Compliance: In global supply chains, quality traceability is paramount. Every batch of valves leaving our facility comes with a complete Material Test Report (MTR) and fully complies with mainstream international standards. Whether you are supplying the stringent Japanese market or outfitting advanced facilities in Europe and the US, a product with complete certifications and precise manufacturing provides ultimate peace of mind for procurement and engineering teams.
Ensuring Smooth Processes & On-Time Delivery
In international B2B operations, stable logistics and delivery times are just as critical as exceptional product quality. Rooted in Taiwan's precision manufacturing excellence, we deeply understand how crucial time is to your system operations. Whether you have an urgent order or a special project requirement, we possess the agile scheduling capabilities to ensure that even high-spec or custom jacketed valves are delivered to you right on schedule.
Upgrade Your Fluid Control System Today
Fluid control allows for zero compromises. Let Anson Flow's AF-S1J Steam Jacketed Ball Valve be the most reliable guardian of your manufacturing process.
Ready to eliminate pipeline blockages, lower pump energy consumption, and optimize your system's efficiency?
🔹 Explore the detailed specifications of the AF-S1J on our website.
🔹 Contact Anson Flow’s Expert Engineering Team for a customized quote at: sales@ansonflow.com
