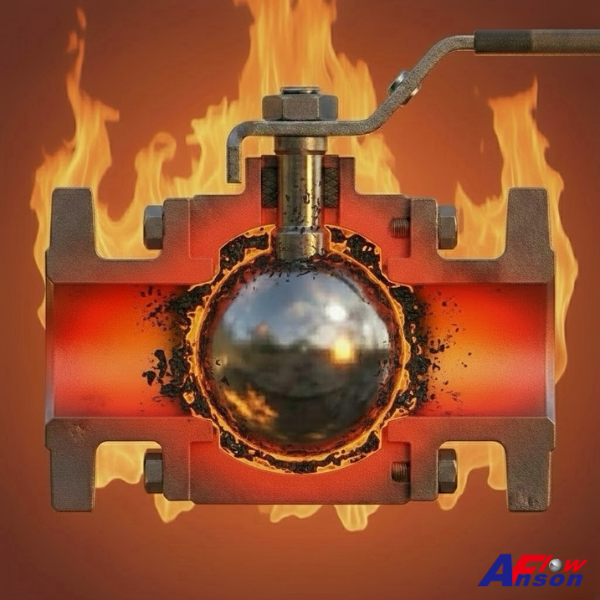

When Fire Hits the Valve: Why Anson Flow Fire-Safe Ball Valves are the Last Line of Defense?

In oil and gas, petrochemical, and high-stakes pharmaceutical manufacturing, fire is the ultimate nightmare. When temperatures soar above 700°C (1300°F), standard valves fail as their soft seals melt, turning a localized incident into a catastrophic disaster.

This is where the Fire-Safe Ball Valve becomes critical. It is the engineered boundary between a controlled event and a total failure.

Certified Protection: API 607 & NACE MR0175

At Anson Flow, safety isn't a suggestion—it’s a certified standard. Our valves are dual-certified to handle the world's harshest conditions:

·         API 607 Certification: Ensures the valve maintains structural integrity and limits leakage during and after a 30-minute inferno.

·         NACE MR0175 Compliance: Essential for sour environments, our materials are specifically treated to resist sulfide stress cracking (SSC) and corrosion, ensuring the valve doesn't embrittle or fail prematurely in the presence of H2S.

The Core Defense Mechanisms of Anson Flow Valves

1. The "Fire-lip" Design: The Ultimate Backup Seal

Under normal conditions, our ball valves rely on high-quality soft seats (PTFE/RTFE) for bubble-tight, zero-leakage performance. However, during a fire:

·         The Mechanism: As the soft seat is consumed by heat, the internal medium pressure pushes the ball against a precision-machined "Fire-lip" (Secondary Metal Seat) integrated into the valve body.

·         The Value: This metal-to-metal contact acts as a secondary seal. While the soft seat is sacrificed, the Fire-lip locks the fluid in place, preventing the dangerous "blowtorch effect" from fueling the fire further.

2. Enclosed Bolt Design: Structural Integrity Under Heat

Extreme heat causes metal expansion and structural stress. Anson Flow utilizes an Enclosed Bolt Design:

·         The Advantage: By shielding the bolts within the valve body, they are protected from direct flame exposure. This prevents bolts from loosening or failing due to thermal shock, ensuring the valve body remains securely "locked and loaded" even under high-pressure fire conditions.

3. Blow-out Proof Stem & Anti-Static Device

The valve stem is a critical point of safety. The AF-35 integrates a dual-layered protection system:

·         Blow-out Proof Stem: The stem features an internal-entry shoulder design. Unlike externally inserted stems, this design ensures that even if internal pressure spikes to extreme levels during a fire, the stem is physically locked into the body and cannot be ejected, protecting personnel on-site.

·         Anti-Static Device: We install spring-loaded stainless steel anti-static beads between the stem-to-ball and stem-to-body. This ensures constant electrical continuity, safely discharging static electricity generated by fluid friction and preventing sparks in explosive atmospheres.

4. Live-Loaded Graphite Packing: Securing the Stem

The valve stem is a common point of failure. We combine Flexible Graphite Packing with a Live-loaded spring system:

·         Self-Compensation: Graphite is naturally fire-resistant. The live-loaded springs maintain constant pressure on the packing, automatically compensating for thermal expansion and contraction to ensure the stem remains sealed.

Diverse Solutions for Every Critical Application

Anson Flow offers a comprehensive range of fire-safe solutions designed to survive both fire and corrosion:

·         2-Piece Fire-Safe Ball Valves: The perfect balance of cost-efficiency and safety for standard industrial lines.

·         3-Piece Fire-Safe Ball Valves (e.g., AF-35 Series): Featuring the Enclosed Bolt Design and ease of maintenance; the center section can be serviced without disturbing the pipework.

·         Flanged Fire-Safe Ball Valves (e.g., AF-51F Series): Designed for heavy-duty applications, providing superior structural stability and meeting international flange standards.

All our fire-safe valves feature the ISO 5211 Direct Mounting Pad, allowing for the quick installation of actuators for automated Emergency Shutdown Systems (ESD).
