Why Flow Path Polishing Matters in Semiconductor Valve Selection

In semiconductor fabs, contamination control is not a "nice to have" — it is the difference between yield and scrap. Every wafer travels through systems delivering ultra-pure water (UPW), process chemicals, slurries, and high-purity gases, and the cleanliness of those delivery systems is determined as much by the valves as by the piping itself.

When fab engineers specify valves, one detail decides whether a part will survive the audit: the surface finish of the wetted flow path.

A stainless steel surface that looks polished to the eye can be full of micro-pits, tool marks, and roughness under SEM. In a sub-nanometer process environment, those imperfections are exactly where particles shed, metal ions leach, and moisture clings — directly threatening wafer yield.

As a Taiwan-based valve manufacturer serving semiconductor customers worldwide, Anson Flow understands these requirements. Our AF-30, AF-33, and AF-60 ball valves can be configured with tube-end connections and precision-polished flow paths to match the cleanliness level your application demands.

1. Particle Generation: The Hidden Yield Killer

Unpolished or roughly machined valve flow paths shed particles continuously, especially during pressure and flow transients. In UPW loops and high-purity gas lines, even a single sub-micron particle event can:

• Trigger a defect cluster across multiple wafers
• Force a line flush that consumes hours of fab uptime
• Cause specification drift in CMP slurry delivery

Reducing the surface roughness (Ra value) of the flow path to a mirror finish dramatically lowers the population of detachable particles, giving cleanroom filtration systems a fighting chance.

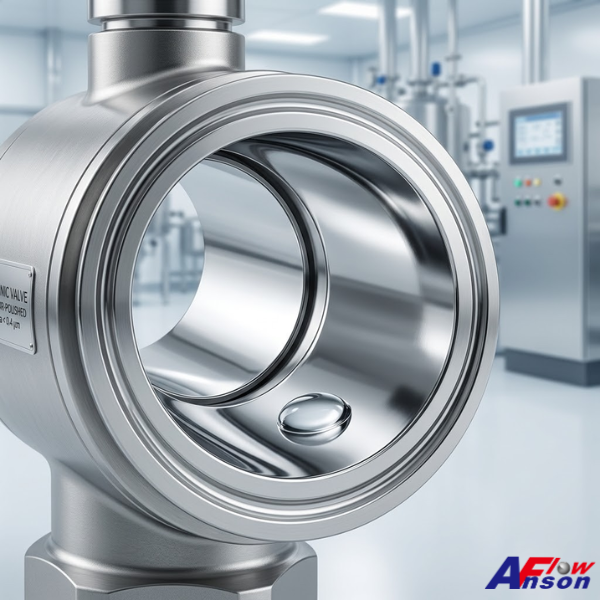

AF-60 3-Piece Sanitary Tube Bore Ball Valve — Engineered for Particle Control

l   Wetted parts polished to customer-specified Ra value (180 Grit RMS / 0.51–0.64 µm and finer finishes available)

l   External mechanical polish options on request

l   Oil-free assembly — no hydrocarbon contamination from manufacturing

2. Dead Volume and Trapped Moisture: Enemies of High-Purity Gas Delivery

In specialty gas lines (NH₃, HCl, WF₆, silanes), any dead volume or crevice inside the valve becomes a moisture trap. Trapped moisture reacts with process gases to form acids, corrodes downstream components, and contaminates the next batch when the gas is switched.

The conventional ball valve has a known weakness here: the cavity behind the ball seat is a textbook dead volume.

Zero-Dead-Space Sealing — AF-60 with PTFE Cavity Filler Seat AF-60 offers an optional PTFE cavity filler seat that fills the space behind the ball, eliminating the dead volume where gases and moisture would otherwise pool. The result: faster purge times, cleaner gas changeovers, and lower risk of cross-contamination between process gases.

l   Helium leak testing available upon request

l   Bosses for purge connections built into the body and end cap

3. Tube Connections: Why They Matter for High-Purity Systems

Semiconductor and UHP systems are built around welded tube, not threaded or flanged pipe. Tube provides:

l   Tighter dimensional control for orbital welding

l   Smoother ID transitions — no gasket gaps, no thread crevices

l   Consistent OD for clamp- and compression-style fittings

A valve that doesn't natively support tube-end connection forces the contractor to use adapters — adding weld points, crevices, and potential leak paths.

True Tube Design Across the Anson Flow Range

l   AF-60 Sanitary Tube Bore Ball Valve: Native true tube full-port design, with end connections including BW Sch 10, ANSI 150 Flange, Compression End, and Tube End. Sizes 1/2" – 6", and 8" – 14" in SCH10. Rated 1000 PSI / PN64 (720 PSI at 6").

l   AF-30 (3-Piece Economical Ball Valve) and AF-33 (3-Piece Direct Mount Ball Valve): Available with customized tube-end connections and additional flow-path polishing on request. Both rated 1000 PSI, sizes 1/4" – 4". Ideal for PCW (process cooling water), bulk gas distribution, and facility utility lines where full sanitary-grade cost isn't justified but tube fit-up and cleanliness still matter.

4. Materials Matter as Much as Surface Finish

Surface polishing is only half the equation. Even a mirror-polished valve will fail in a UHP environment if the wetted soft components outgas, leach extractables, or degrade under the process chemistry.

AF-60 Material Configuration for Semiconductor Service

l   PTFE seats and cavity filler — chemically inert across the full range of fab chemistries

l   FDA-compliant PTFE cavity filler material — clean extractables profile, ideal for high-purity service

l   Stainless steel bodies (CF8M / 316 as standard; special alloys available)

l   Maintenance-free, live-loaded double sealing stem packing for high-cycle automated service

l   Blow-out proof stem for safety on hazardous gas service

l   ISO 5211 direct mounting pad for clean integration with pneumatic actuators

Choosing the Right Anson Flow Valve for Your Fab

Anson Flow's Commitment to Semiconductor Customers

A valve in a fab is not a commodity — it is a process-defining component. Get it wrong, and yield drops; get it right, and the system runs reliably for years.

Before leaving our factory, the AF-60 sanitary valve series is built with:

l   Polished wetted surfaces — finish specified to customer requirement (180 grit and finer available)

l   FDA-compliant PTFE soft components for clean extractables

l   Helium leak testing available on request for the most demanding gas service

l   Material certification (EN 10204 3.1) on every shipment

And when your application calls for tube-end connections on a less critical loop — facility water, cooling, instrument air — our AF-30 and AF-33 can be customized to match, giving you a single-source supplier for the full hierarchy of cleanliness in your fab.
